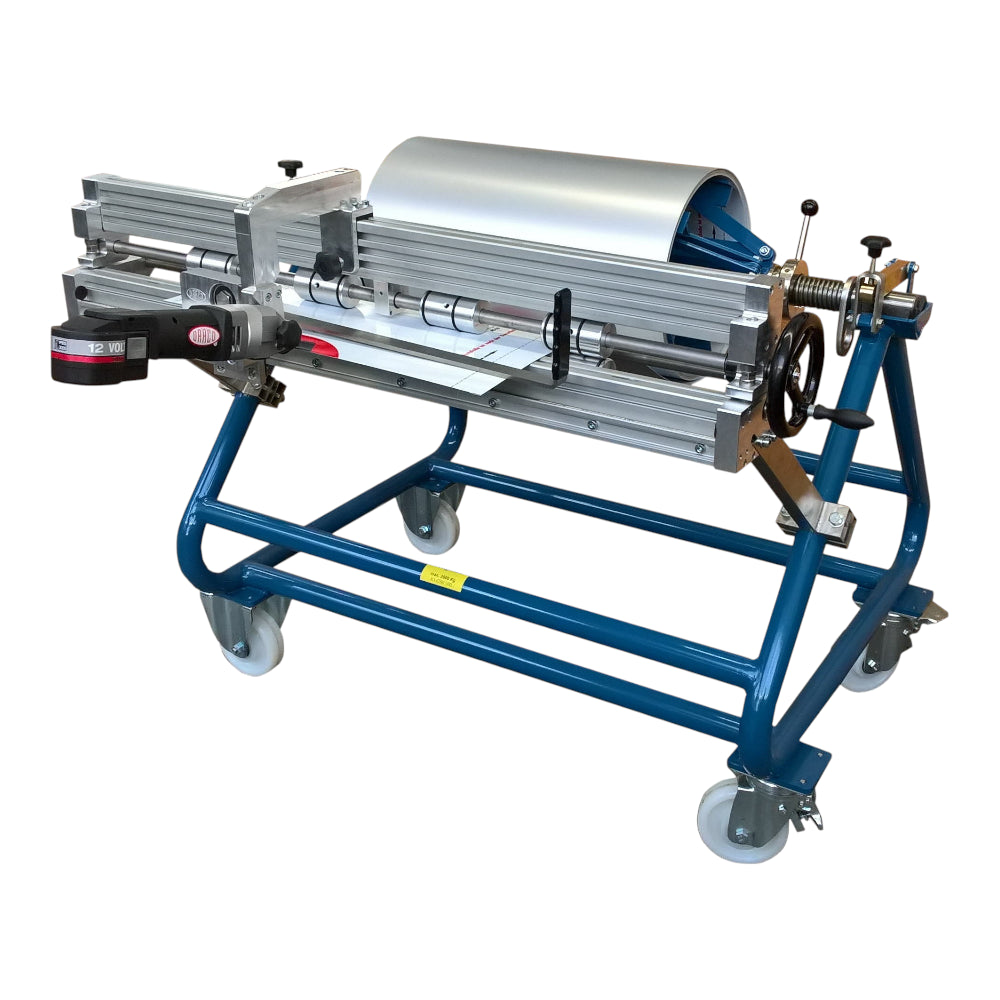

DRÄCO - Mobile coil trolley with unwinding, cross-cutting & longitudinal cutting device – K1-CW AQ/LSE series

✔ Mobile complete system for unwinding, cross-cutting, and longitudinal cutting of coils
✔ High flexibility thanks to modular construction and mobile design
✔ Precise cutting technology for clean cuts without reclamping
✔ Robust professional quality for daily use in the roofing trade
✔ Ideal for workshop & construction site – For professionals in the roofing trade

Professional use in roofing and metalworking

The DRÄCO mobile coil cart with unwinding, cross-cutting, and longitudinal cutting unit – K1-CW AQ/LSE series – is a high-performance complete system for roofing companies, sheet metal shops, metal construction companies, workshops, and industrial profile manufacturing. Designed for professional use, the system enables efficient and safe sheet metal processing directly on-site – whether in the workshop or on the construction site.

Thanks to the integrated unwinding, cross-cutting, and longitudinal cutting devices, coils can be processed quickly, precisely, and gently, without the need for reclamping. This saves time, reduces potential errors, and significantly increases productivity . The coil cart is particularly impressive in mobile applications, such as on construction sites, due to its ease of use and high stability.

The mobile DRÄCO coil trolley of the K1-CW AQ/LSE series can also be used as a reliable material feeder for profiling machines. This makes it ideal for companies that want to operate economically and flexibly.

Technical details at a glance

Maximum material thickness:

• Steel up to 1.0 mm
• Stainless steel (V2A) up to 0.5 mm
• Unwinding capacity of the unwinding unit: approx. 750 kg

Max. coil outer diameter:

• 1100 mm without cutting unit
• 800 mm with unwinding and cross-cutting device
• Coil inner diameter: 230 – 650 mm
• Total weight of complete system: approx. 180 kg
• 5-arm, fully brakeable and replaceable reel
• Mobile thanks to 2 swivel and 2 fixed casters, all with brakes.

Variants & Equipment

Available versions

• K1-CW/100 AQ/LSE/S – up to 800 mm coil width, load capacity approx. 2000 kg
• K1-CW/125 AQ/LSE/S – up to 1000 mm coil width, load capacity approx. 1500 kg
• K1-CW/150 AQ/LSE/S – up to 1250 mm coil width, load capacity approx. 1500 kg

All versions come complete with a 5-piece AK3514-2 Ni-MH cordless scissor set and are ready for immediate use. The coil cart is also optionally available with a base for table mounting.

Thanks to its sophisticated design, high load-bearing capacity and precise cutting technology, the DRÄCO Mobile Coil Trolley with unwinding, cross-cutting & longitudinal cutting device – K1-CW AQ/LSE series is the ideal solution for professional users who value efficiency, safety and maximum flexibility.

Note:Wear parts can be reordered at any time upon request.
