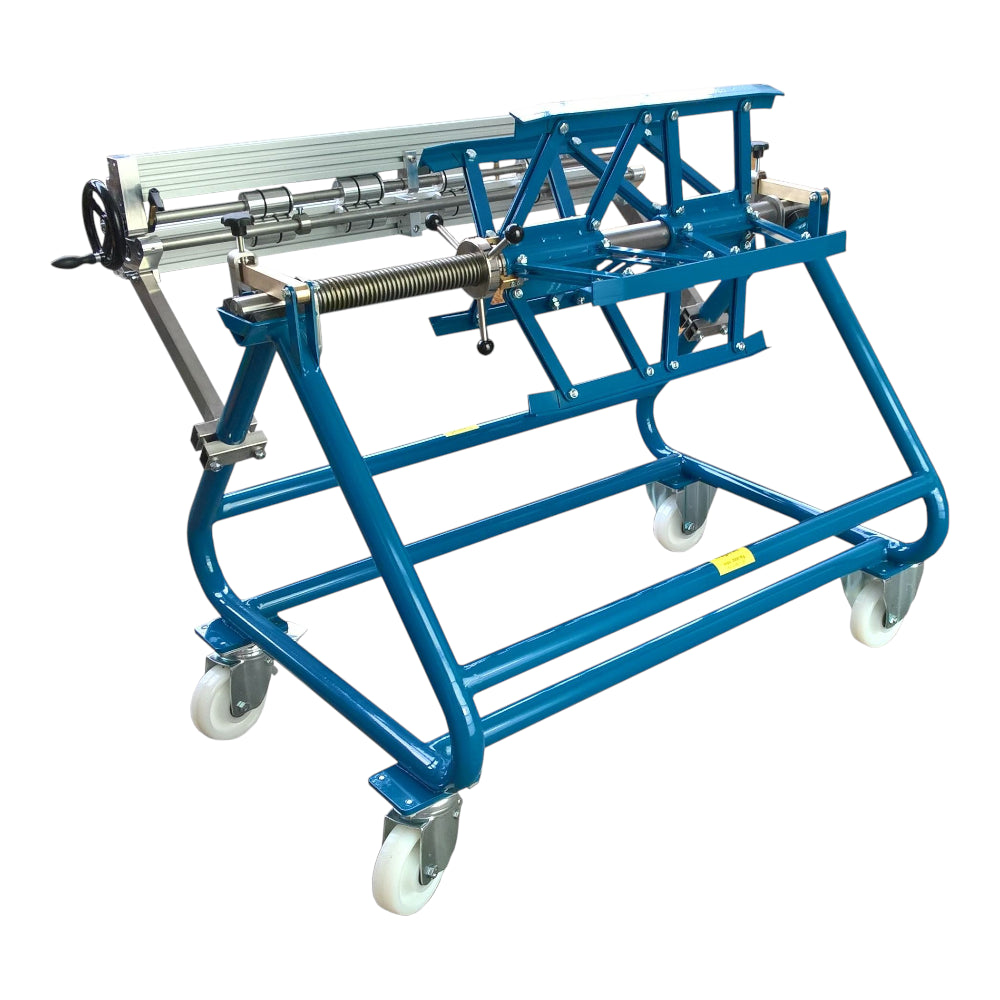

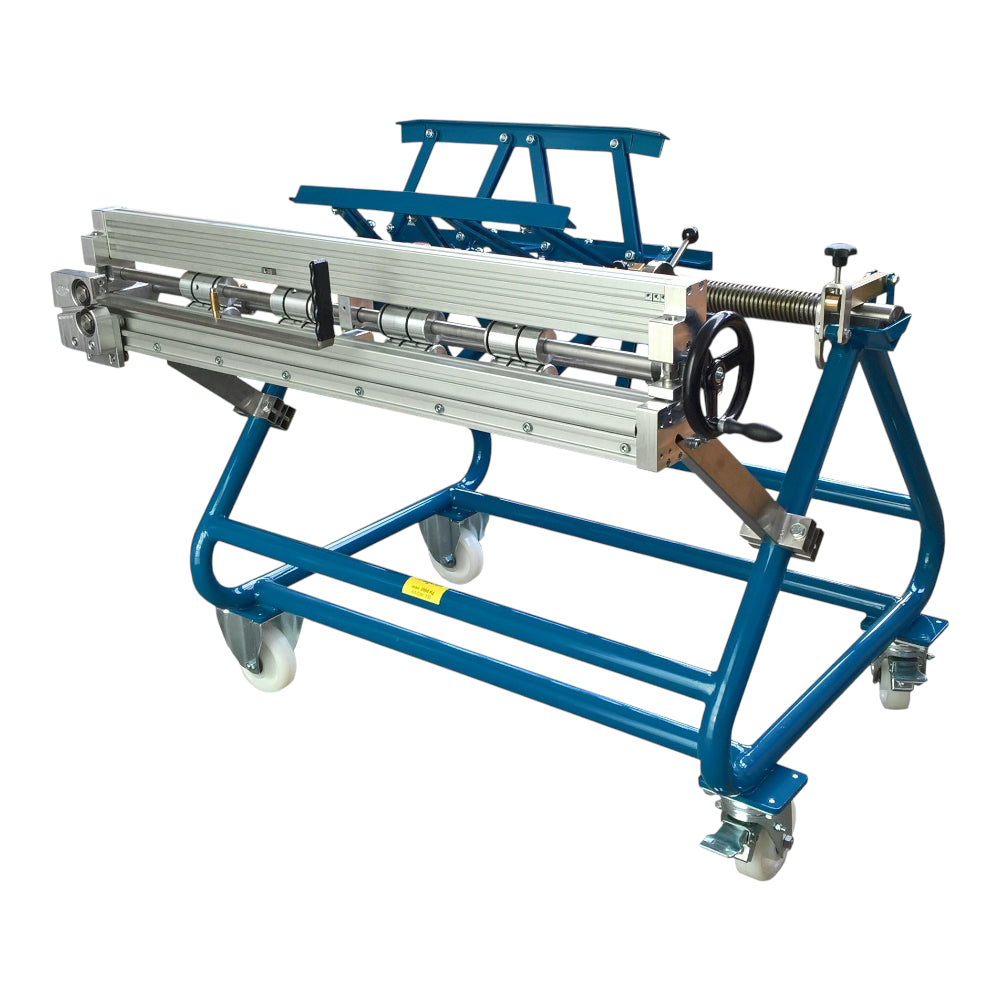

DRÄCO - Mobile coil trolley with unwinding and cross-cutting device K1-CW series

✔ Two work steps in one system– unwinding and precise cross-cutting directly from the coil
✔ Mobile & flexible use– mobile construction for workshop and construction site
✔ High load capacity– up to 2,000 kg depending on the model
✔ Precise cuts– clean cuts up to 1.0 mm steel
✔ Industrial quality from Dräco – robust, durable and practical

Mobile coil trolley K1-CW series – Efficiency for professionals in the roofing and sheet metal trades

The Dräco Mobile Coil Wagon K1-CW AQ with integrated unwinding and cross-cutting unit is the ideal solution for modern sheet metal and roofing businesses.The K1-CW/100AQ, 125AQ, and 150AQ models combine two essential work steps in a single unit, ensuring maximum efficiency, time savings, and the highest precision in metal processing.

Especially in professional applications using high-quality roofing and sheet metal tools , a clean, controlled material flow iscrucial. This is precisely where the mobile coil cart excels, thanks to its well-designed construction and ease of use.

Specialized use – designed for everyday use

The mobile coil cart is ideally suited for uncoiling and cutting metal coils made of steel, aluminum, zinc, or stainless steel.Thanks to the integrated cross-cutting unit,sheets can be precisely cut directly from the coil – WITHOUT an additional guillotine shear or plate shear.

Typical areas of application include:

• Plumbing
• Roofing companies
• Workshops for roof system construction
• Industrial and profile manufacturing

The system can also be used without limitation as a classic decoil trolley for profiling machines.This makes the K1-CW series a true all-rounder for professional roofing and sheet metal work .

Technical details at a glance

Load capacity:

• K1-CW/100AQ: up to 2,000 kg
• K1-CW/125AQ: up to 1,500 kg
• K1-CW/150AQ: up to 1,500 kg
• Rolling capacity: up to 750 kg
• Max. sheet thickness:
• Steel: up to 1.0 mm
• V2A stainless steel: up to 0.5 mm
• Max. coil outer diameter: 800 mm

Coil widths:

• 100AQ: up to 800 mm
• 125AQ: up to 1,000 mm
• 150AQ: up to 1,250 mm
• 5-arm, fully brakeable reel
• 2 swivel casters & 2 fixed casters for secure positioning

Your roof specialist for professional solutions

Whether on a construction site, in a workshop, or in an industrial setting: with the DRÄCO coil trolley, you're investing in quality, safety, and productivity.Discover this high-performance mobile coil trolley now at your roofing specialist , Roofify – your reliable partner for professional roofing and sheet metal work supplies.

Note regarding spare and wear parts

Spare and wear parts are available at any time upon request.
