✔ Top model for standing seam profiles – powerful profiling machine for roofs and facades
✔ Automatically engaging feed rollers for uniform material feeding
✔ Profiling for 25 mm or 32 mm clip relief for single and double folding
✔ Integrated longitudinal and transverse cutting device for precise cutting
✔ Stepless sheet width adjustment (280–820 mm) for maximum flexibility

Professional Profiling Machine for Standing Seam Technology

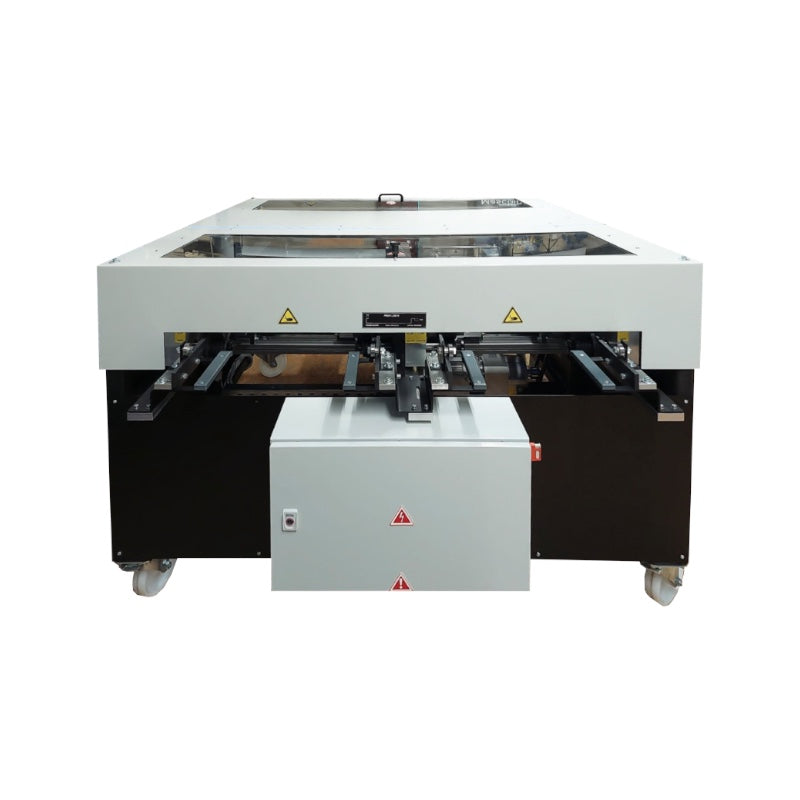

The Profil Pro 2000 profiling machine is the top model of Herburger profiling systems and was developed for the professional production of standing seam profiles in roof and facade construction. Due to its robust design, the integrated cutting devices and the automatic sheet feeding, the machine is ideal for roofers, plumbers and metalworkers with high production requirements.

Particularly practical are the automatically engaging feed rollers, which ensure uniform material transport and significantly facilitate the profiling of long sheet lengths.

Flexible profile production for various materials

The Profil Pro 2000 can process a wide variety of materials from roof and facade construction:

• galvanized or coated steel sheet
• Titanium zinc
• Stainless steel (e.g. Roof-Inox / Uginox)
• Copper
• Aluminum

Depending on the material, sheet thicknesses of up to 0.8 mm (aluminum up to 1.0 mm) can be processed.

The machine enables the production of:

• Underlays
• Overlays
• Conical sheets from 50 mm center distance
• Standing seam profiles for roof and facade

Precise cutting directly on the machine

A special feature of the Profil Pro 2000 is the integrated longitudinal and transverse cutting device. This means that the sheets can not only be profiled but also cut directly.

In addition, an integrated measuring wheel for length measurement ensures precise control of the profiled sheets during production.

This combination enables significantly more efficient production of standing seam profiles directly in the workshop or on the construction site.

Technical data

Model: Profil Pro 2000

Machine dimensions:
Length: 1500 mm
Width: 1300 mm
Height: 1000 mm

Weight:
approx. 420 kg

Profile sizes:
25 mm or 32 mm (clip relief) for single and double folding

Sheet width:
280 – 820 mm (steplessly adjustable)

Max. sheet thickness:
up to 0.8 mm

Power consumption:
1.5 kW / 220 V / 16 A

Optional accessories

The following accessories are available for additional applications:

• Speed control via potentiometer (0 – 15 m/min)
• Bending unit for bending profiles (convex or concave)
• Beading roller set for stiffening beads
• Roller set for clip relief
• Conversion kit for 1 mm thick sheet
• 380 V or 110 V connection

High-quality profile production for roofers and plumbers

The Profil Pro 2000 offers a professional solution for the economical production of standing seam profiles. Through the combination of precise profiling technology, integrated cutting devices and automatic sheet feeding, it enables the fast and efficient production of high-quality roof and facade profiles.

You can find this high-quality profiling machine for roofers and plumbers at your roof specialist Roofify.
