✔ Fully automatic profiling machine for standing seam profiles – ideal for industrial production
✔ Profiling for 25 mm and 32 mm (clip relief) for single and double standing seam
✔ Automatic sheet feed from the decoiler for continuous production
✔ Fully automatic cross-cutting device plus longitudinal cutting function
✔ Siemens control for quantity and length preselection

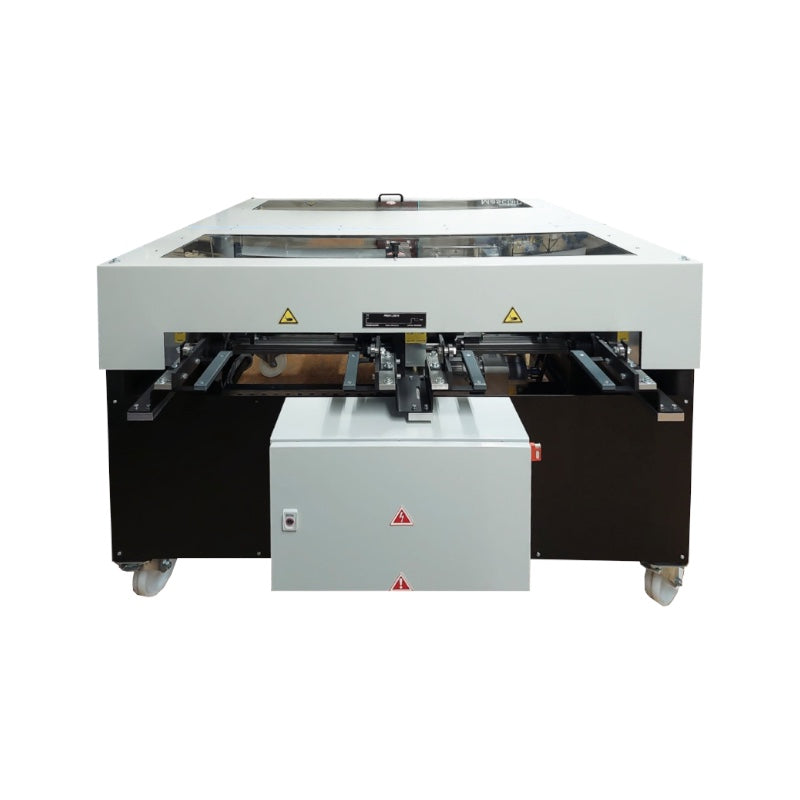

Fully automatic profiling system for standing seam technology

The Profil Pro 3000 is the luxury model of Herburger profiling systems and was specially developed for the automated production of standing seam profiles in roof and facade construction. Thanks to its fully automatic sheet drive and integrated cutting functions, the machine is particularly suitable for companies with high production output.

The automatic feed enables the direct processing of sheet coils from the decoiler, allowing long profile sheets to be produced efficiently and without manual feeding.

Precise profile production with automatic cutting

The Profil Pro 3000 features a fully automatic cross-cutting device as well as a manually adjustable longitudinal cutting device with a residual material ramp. This allows profiled sheets to be cut directly to the desired length and width during production.

In addition, an electric rotary shear for cross-cutting before profiling ensures precise cuts and efficient material processing.

The integrated length measuring device with ±2 mm accuracy enables precise production of the profiled sheets.

Flexible processing of various materials

The profiling system is suitable for all common materials in roof and facade construction:

• galvanized or coated steel sheet
• titanium zinc
• stainless steel (e.g. Roof-Inox / Uginox)
• copper
• aluminum

Depending on the material, sheet thicknesses of up to 0.8 mm (aluminum up to 1.0 mm) can be processed.

The machine is suitable for the production of:

• underlayments
• coverings
• conical sheets from 50 mm axis dimension
• standing seam profiles for roof and facade

Technical data

Model: Profil Pro 3000

Machine dimensions:
Length: 1500 mm
Width: 1400 mm
Height: 1000 mm

Weight:
approx. 480 kg

Profile sizes:
25 mm and 32 mm (clip relief) for single and double standing seam

Sheet width:
250 – 820 mm (steplessly adjustable)

Max. sheet thickness:
up to 0.8 mm

Power consumption:
1.5 kW / 380 V / 16 A

Features and functions

The Profil Pro 3000 offers numerous professional functions:

• automatic sheet feeding unit
• Siemens control for quantity and length preselection
• speed regulation via potentiometer (0 – 15 m/min)
• electric rotary shear for cross-cutting
• adjustable longitudinal cutting knife for adjustment sheets
• hinged protective cover with safety switch

This equipment enables highly precise and automated production of standing seam profiles.

Optional accessories

The following options are available for additional applications:

• rounding device (convex and concave)
• trailer attachment for mobile use
• conversion kit for 1 mm thick sheet metal

Industrial profile production for roof and facade

The Profil Pro 3000 is a highly automated profiling system for professional companies in roof and facade construction. Thanks to its automatic control, integrated cutting devices and coil feed, it enables fast, precise and economical production of standing seam profiles.

You can find this powerful profiling machine for roofers and plumbers in the roofer shop of Roofify – your specialist for professional roofing and plumbing technology.
