✔ Compact profiling machine for standing seam profiles – ideal for roofers and plumbers
✔ Stepless sheet width adjustment (280–840 mm) thanks to Quickset system
✔ Profiling for single and double fold (25 mm)
✔ Suitable for many materials such as zinc, copper, aluminum or stainless steel
✔ Made in Austria – robust machine quality for professional use

Compact profiling system for standing seam technology

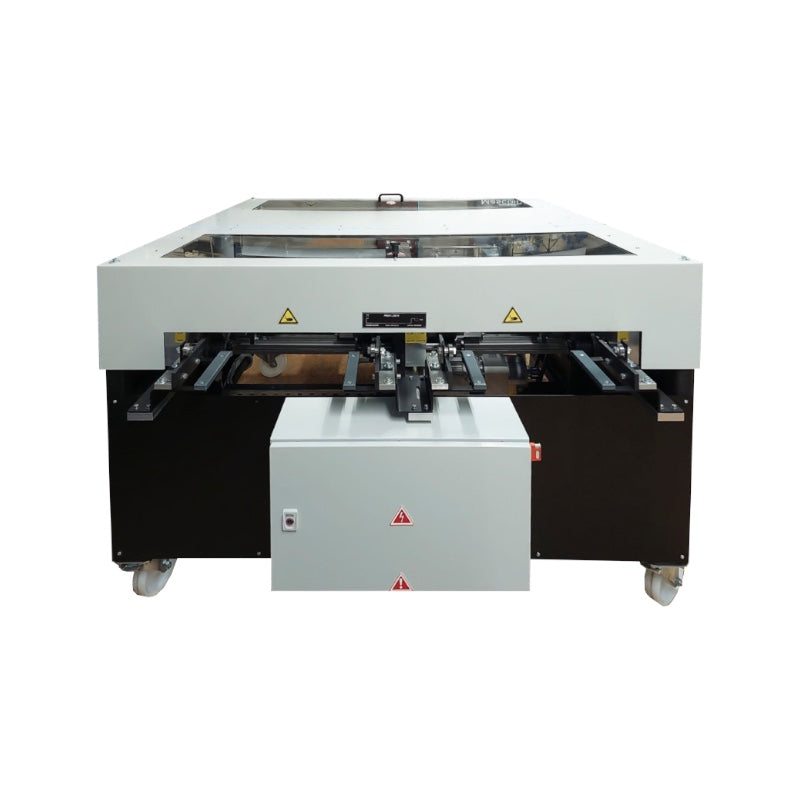

The Profil Pro 800 profiling machine is a compact and powerful profiling system for the production of standing seam profiles in roof and facade construction. It was specially developed for roofers, plumbers and metalworkers who value flexible production directly on site or in the workshop.

With its well-thought-out design, the machine enables efficient and precise profiling of sheets for single and double folding systems. Thanks to the stepless sheet width adjustment via the Quickset system, the system can be quickly adapted to different profile widths.

Suitable for many materials

The Profil Pro 800 processes a variety of common materials in roof and facade construction:

• Galvanized steel sheet / coated steel sheet
• Titanium zinc
• Stainless steel (e.g. Roof-Inox / Uginox)
• Copper
• Aluminum

Depending on the material, sheet thicknesses of up to 0.8 mm (aluminum up to 1.0 mm) can be processed.

This makes the machine ideal for the production of:

• Standing seam roof panels
• Facade profiles
• Conical sheets
• Underlays and overlays in metal construction

Precise profiling through modern roller technology

The profiling system is equipped with a hardened roller set with integrated drive elements. This modern roller technology ensures:

• Clean profile geometry
• Uniform material guidance
• Durable and low-wear components

This results in precise standing seam profiles with a high degree of accuracy – a decisive advantage for demanding roof and facade projects.

Technical data

Model: Profil Pro 800

Machine dimensions:
Length: 1100 mm
Width: 1100 mm
Height: 950 mm

Weight:
approx. 290 kg

Profile size:
25 mm for single and double fold

Sheet width:
continuously adjustable from 280 – 840 mm

Maximum sheet thickness:
up to 0.8 mm (material-dependent)

Optional accessories

For additional functionality, the following options are available:

• Extended sheet outlet for stabilizing the sheets
• Conversion kit for 1 mm sheet thickness
• Cutting device / hand shears

These extensions increase the flexibility of the profiling system in daily use.

Efficient profile production for roof and facade

The Profil Pro 800 offers an ideal solution for craft businesses that want to produce standing seam profiles themselves. The compact design, the flexible adjustment of the sheet width and the robust construction make it a reliable machine for roofers, plumbers and metalworkers.

With its high precision and easy operation, the machine enables economical and efficient production of standing seam profiles – both in the workshop and directly on the construction site.
