Falzsid RVM Grooving Seaming Machine for roof and facade construction, flexibly deployable on-site

✓ Flexibly produce groove connectors yourself directly on the construction site & in the workshop
✓ Independent of delivery times, warehousing, and custom orders – ready for immediate use
✓ Three variants: hand crank, gear adapter for cordless screwdriver, retrofit kit
✓ Optimized profile geometry with smooth central web for clean aesthetics & tension-free joint formation
✓ Rainproof connection from 3° roof pitch – tested for wind & rain (accredited testing institute)

Falzsid – RVM Groove Connector Machine: Professional Solution for Precise Groove Connectors

The Falzsid – RVM Groove Connector Machine is the modern must-have in the field of plumbing tools and roofing tools , when groove connectors need to be produced quickly, precisely, and economically. Instead of ordering standard lengths, you can profile exactly to size – ideal for new construction, renovation, and demanding detail connections. This saves you time, costs, and keeps you flexible in every situation – exactly what professionals in roofing supplies and plumbing supplies need today.

Use in Roof and Facade Construction

For which applications is the RVM made?

Groove connectors are used for joint formations of coverings – e.g., on attic, cornices, window sills, or ridge. The RVM profiles connectors with optimized geometry, creating an expansion-compensating, rainproof, and aesthetically clean connection – without additional sealing measures (optional with sealing tape for special requirements).

Why this matters in practice

Especially with long components, thermal movement, and changing weather conditions, precise profiling ensures safety – and saves rework during bending and installation.

Technical Details at a Glance

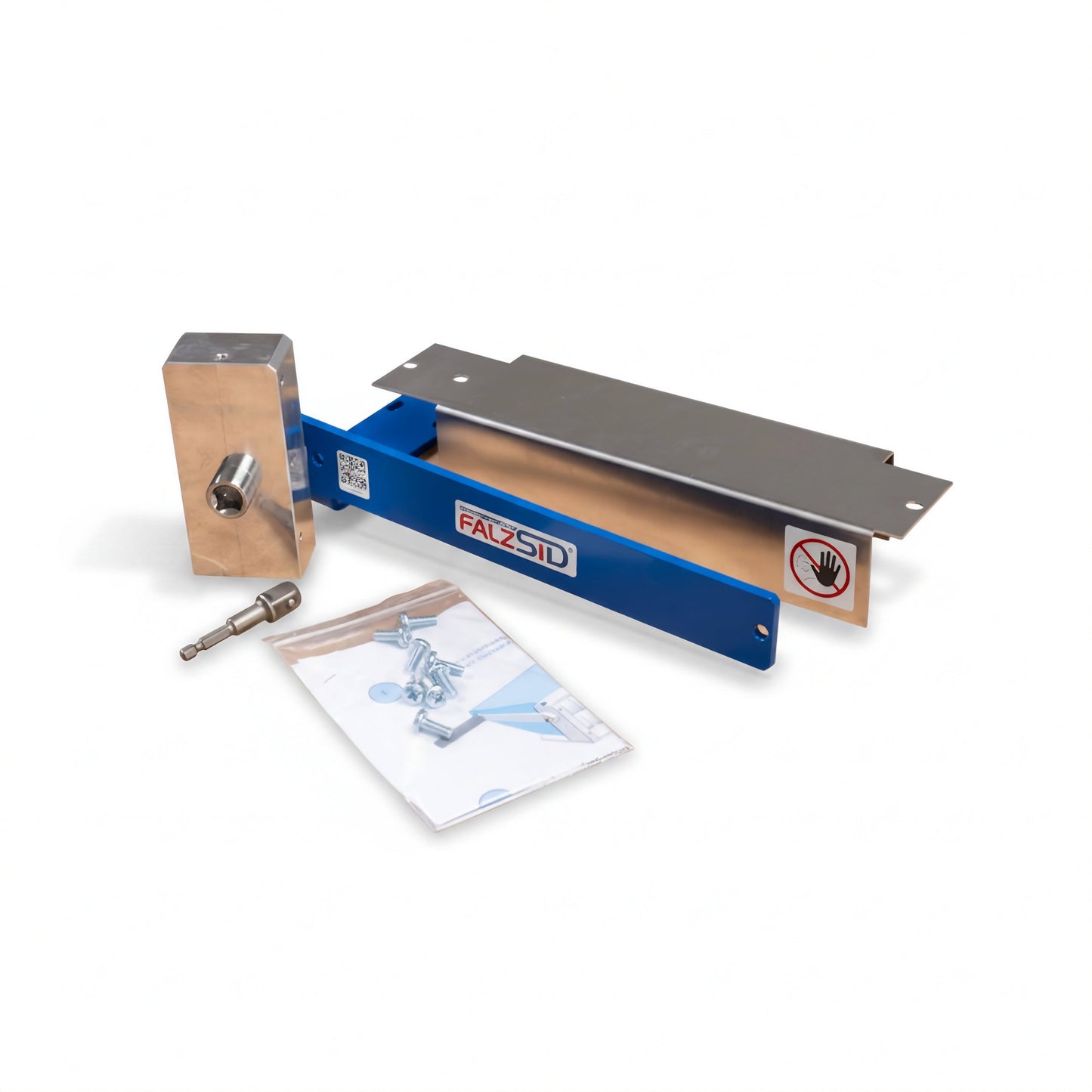

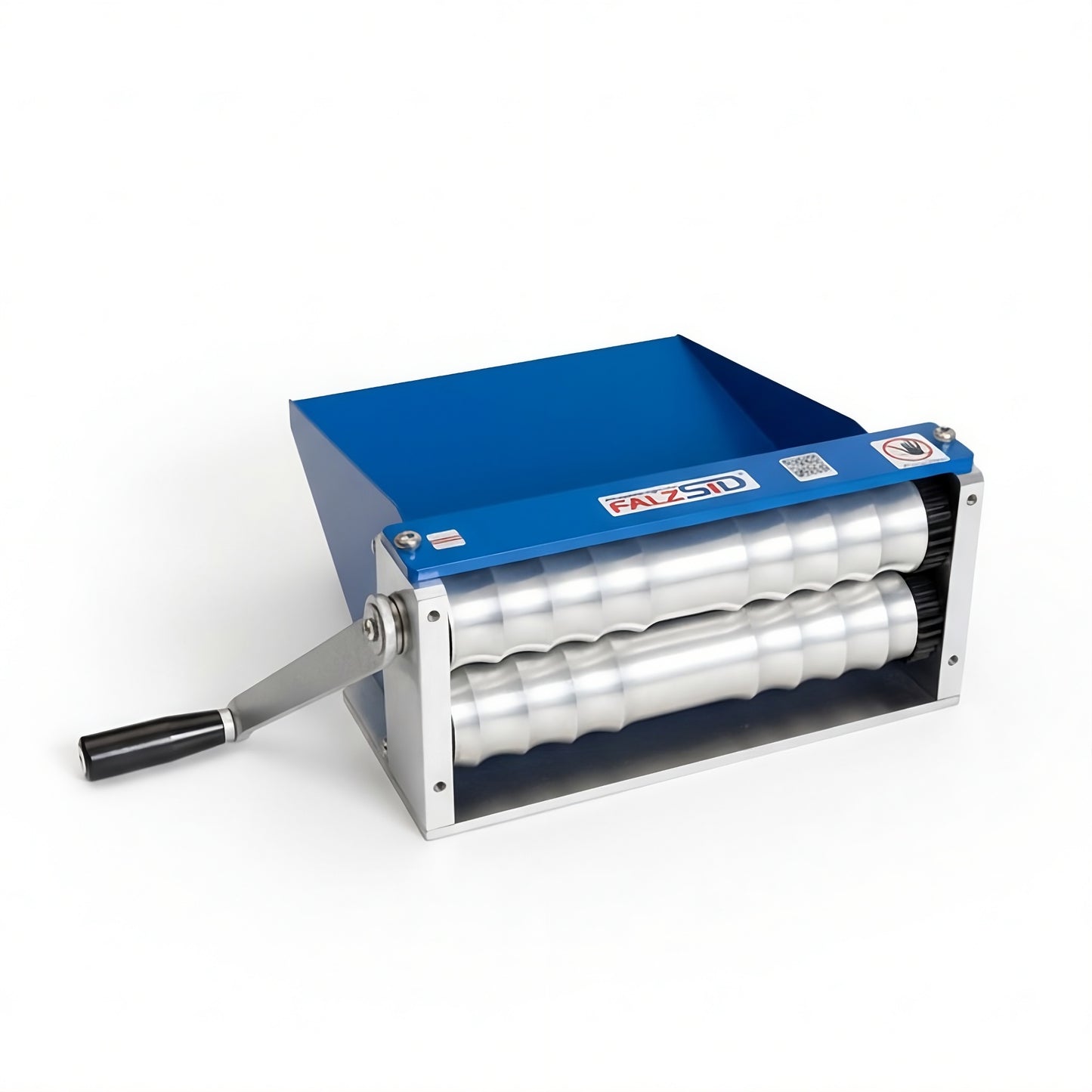

• Variants: Hand crank / Gear adapter / Gear adapter retrofit kit
• Aluminum / Zinc / Copper: up to 1.0 mm
• Galvanized steel: up to 0.75 mm
• Stainless steel: up to 0.6 mm
• Rainproof from 3° pitch
• Smooth central web: better appearance, tension-free joint formation

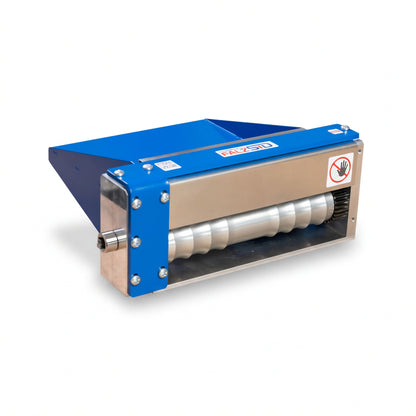

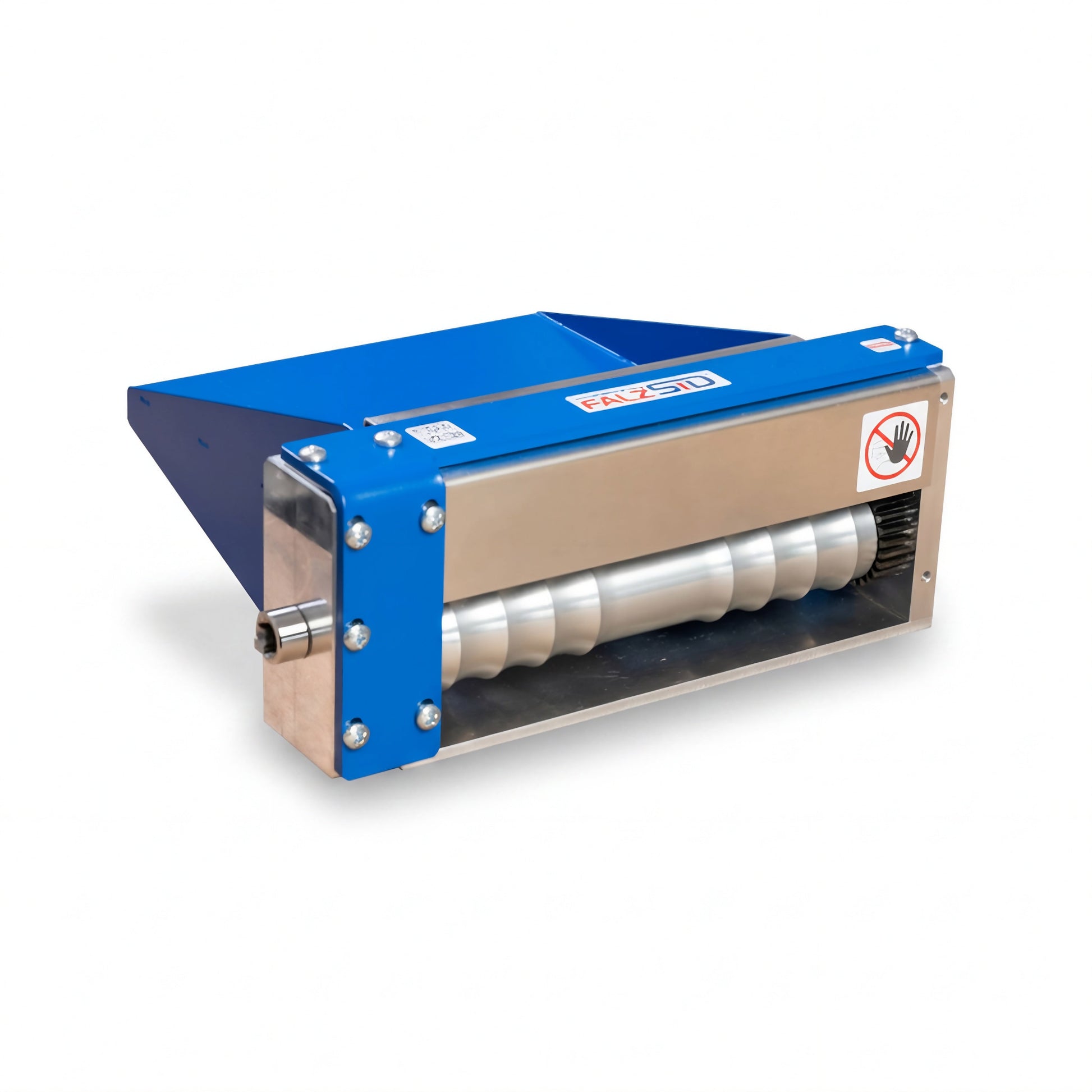

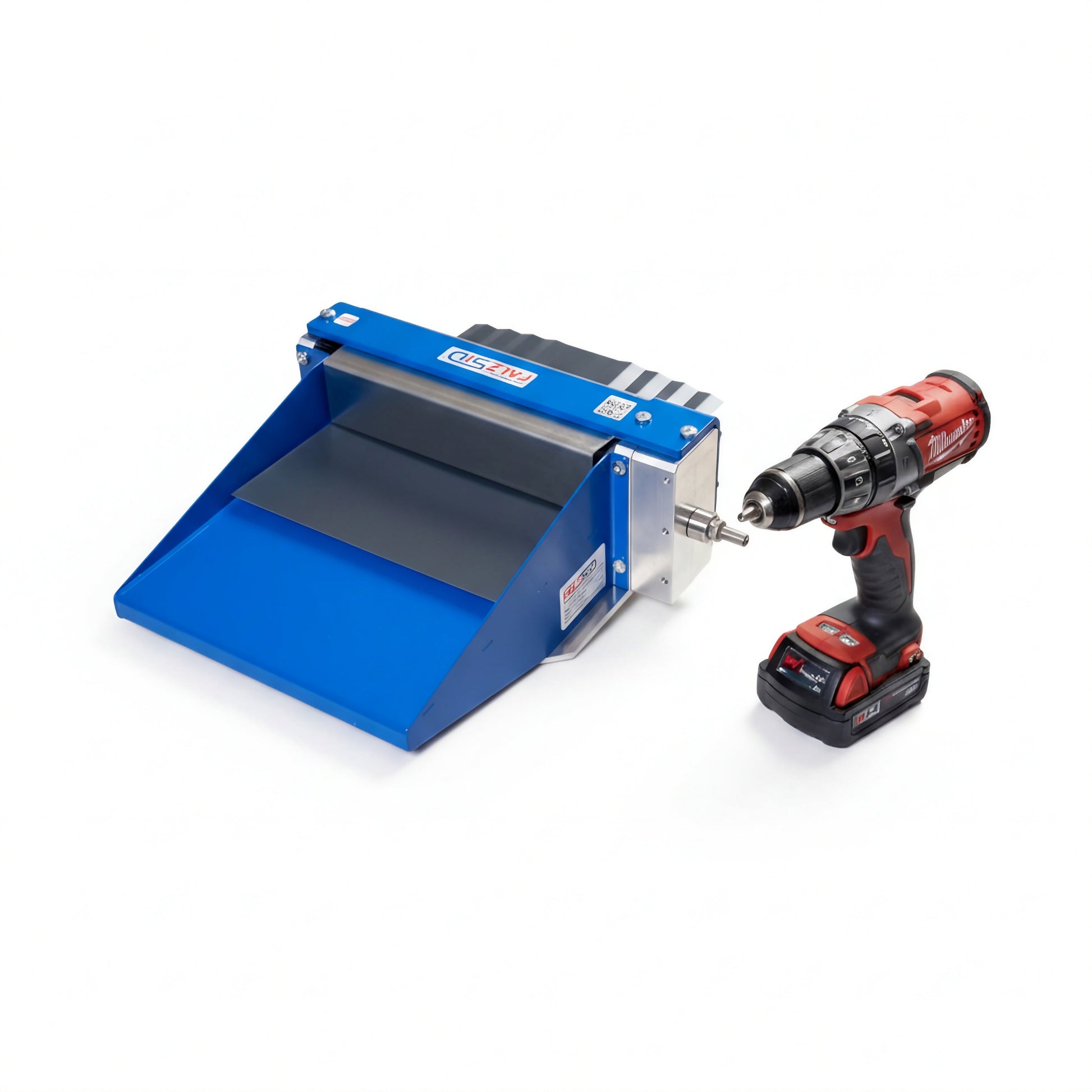

• Fast, easy installation – also ideal for series production with a cordless screwdriver

Quickly Available in the Roofer Shop

Whether on the roof, on the facade or in the workshop : As your Roof -Specialist Roofify we deliver the RVM quickly and reliably – perfect for your daily work in the Roofer Shop with professional standards – produce groove connectors exactly as your project demands.

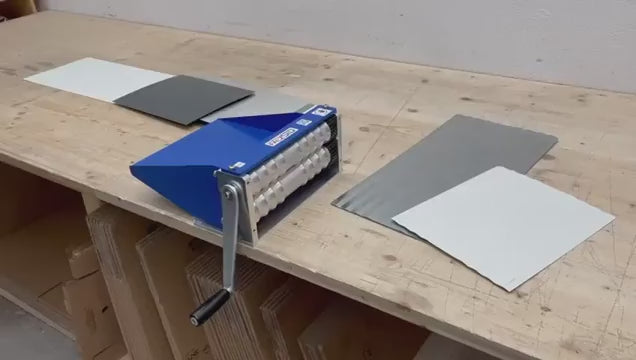

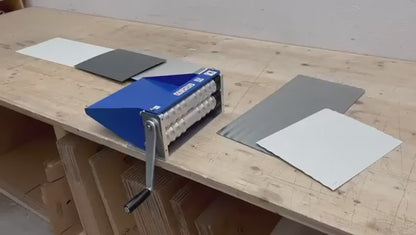

Video: Falzsid RVM - Groove Connector Machine / SJM - Strip Joint Machine www.falzsid.at



How it Compares

Feature	This Product	Advantage for the User
Variants	Available with hand crank, with gear adapter, or as a retrofit kit	Offers flexible application depending on construction site needs and available tools
Material Compatibility	Suitable for aluminum, zinc, copper up to 1.0 mm, galvanized steel up to 0.75 mm, stainless steel up to 0.6 mm	Allows use for a wide range of sheet metals in roof and facade construction
Rain Resistance	Tested rainproof connection from 3° roof pitch	Safe use even with low roof pitches and changing weather conditions

Recommended Applications

• Creating butt joints for parapet coverings, cornices, window sills, and ridge connections
• Profiling groove connectors to the exact required dimensions for new construction, renovation, and detailed connections
• Executing coverings with thermal movement using an expansion-compensating connection
• Fabricating connectors on-site when special lengths are needed or no pre-fabricated standard lengths are planned
• Performing recurring profiling work in the workshop or, depending on the chosen version, with a cordless screwdriver on the construction site

Frequently Asked Questions

Which machine is suitable for producing groove connectors directly on the construction site?

The Falzsid - RVM Groove Connector Machine profiles groove connectors directly on the construction site or in the workshop to the required dimensions. It is suitable for joint formations on coverings such as parapets, cornices, window sills, and ridges.

How does the Falzsid - RVM Groove Connector Machine help with weather-resistant installation on the roof?

The profiled connection is rainproof from a roof pitch of 3° and has been tested for wind and rain by an accredited testing institute. For special requirements, sealing tape can also be used.

Is this groove connector machine a good solution when groove connectors are needed immediately to size?

Yes, the Falzsid - RVM Groove Connector Machine enables the production of precisely fitting groove connectors on-site. This eliminates ordering standard lengths and reliance on delivery times and custom orders.

For which metals and material thicknesses is the Falzsid - RVM Groove Connector Machine designed?

It processes aluminum, zinc, and copper up to 1.0 mm, galvanized steel up to 0.75 mm, and stainless steel up to 0.6 mm. These specifications apply to the Falzsid - RVM Groove Connector Machine.

How does the Falzsid - RVM Groove Connector Machine create a clean joint?

The optimized profile geometry with a smooth central web supports an aesthetically clean and tension-free joint formation. The connection is also designed for expansion compensation in long components and changing weather conditions.

What drive options does the Falzsid - RVM Groove Connector Machine offer?

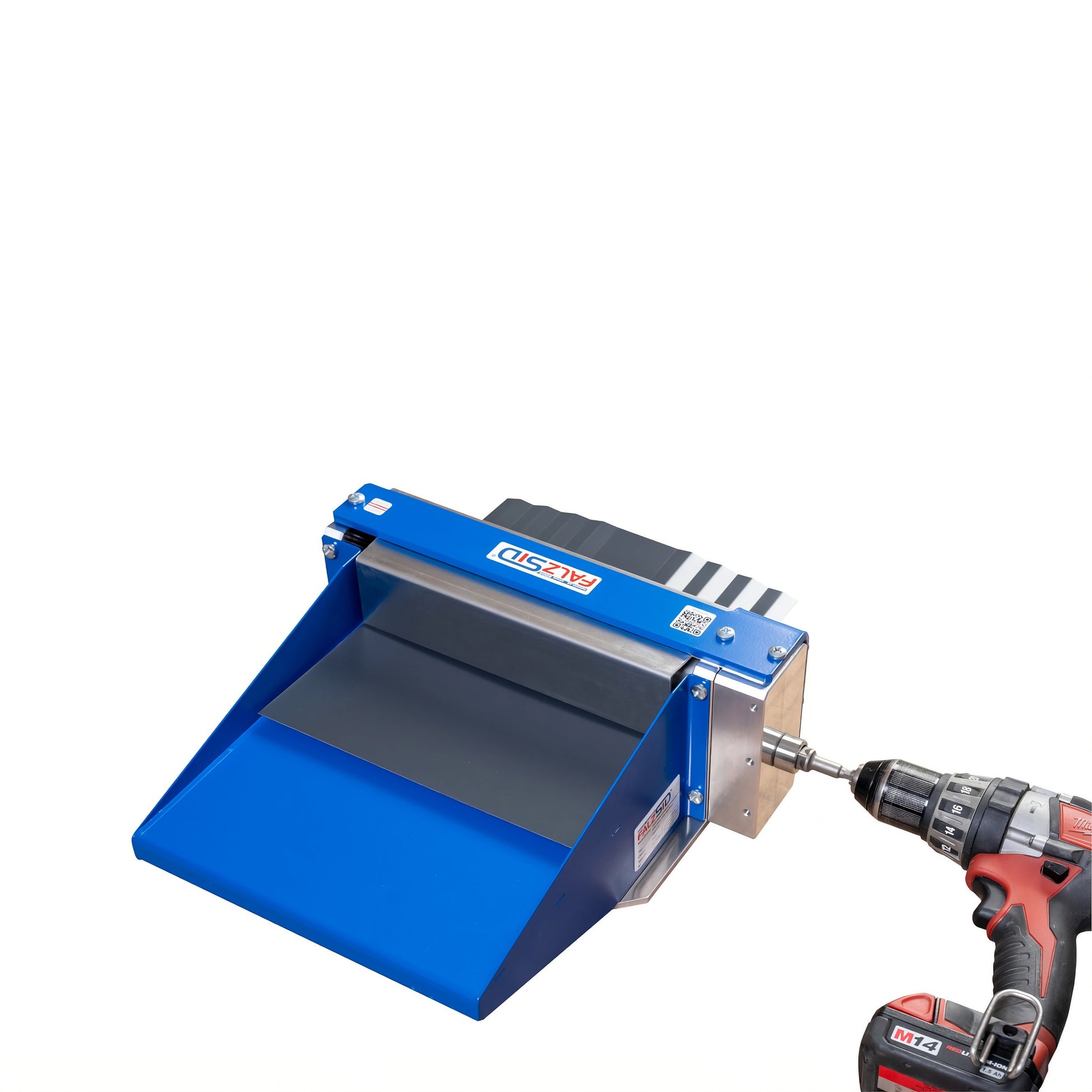

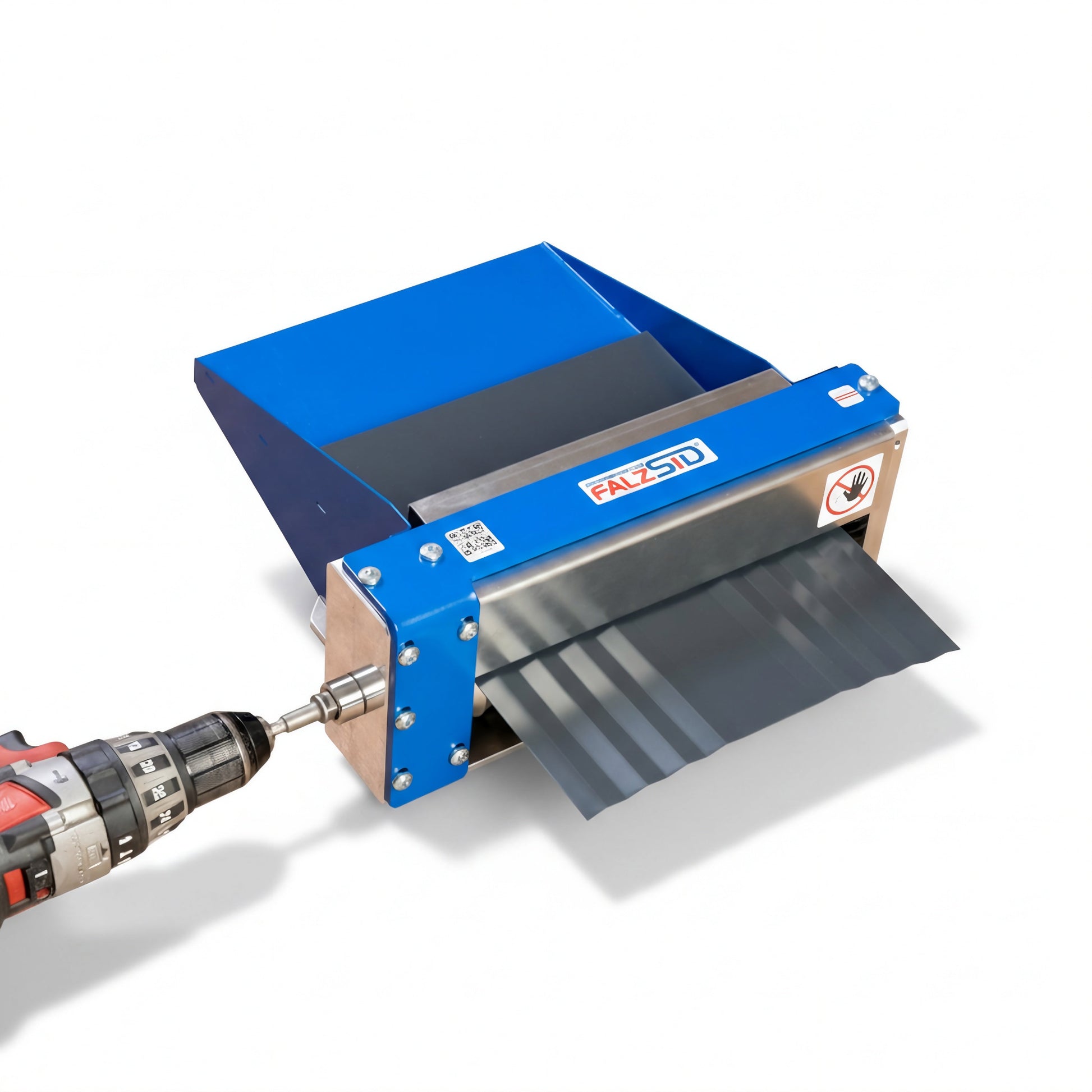

The product family is available as a groove connector machine with a hand crank, with a gear adapter, and as a gear adapter retrofit kit. The gear adapter enables series production with a cordless screwdriver.
